Elios 3 Flammable Gas Sensor

Payload

Real-time warning of flammable gases

request a demo

Take safety to new heights by remotely detecting flammable gases during drone operations

Factory-calibrated and equipped with built-in self-testing, the Elios 3 Flammable Gas Sensor requires no field calibration, ensuring continuous fail-safe operations in harsh industrial environments such as those in Oil & Gas, Mining, Maritime, Chemical, Wastewater treatment, and Industrial Manufacturing.

Reach higher safety standards

Reliably detect flammable gases in hazardous areas, enhancing awareness of atmospheric conditions inside your assets to quickly adjust safety measures during drone operations.

Ease permitting process

Complement traditional handheld sensors with airborne detection to ensure continuous flammable gas monitoring, streamlining risk assessments and accelerating permit approvals.

Enjoy greater peace of mind

Reduce stress factors when operating drones in high-risk areas. The gas sensor adds an extra layer of safety and provides real-time awareness of potential hazards, enabling more focused and confident inspections.

Detection of 14+ gases

Comprehensive in-flight reading

Adjustable LEL threshold

Keep-alive functionality

Compatible with Elios 3 payloads

MPS technology

Reliably detect 14+ flammable gases,
including hydrogen

The Elios 3 Gas Warning Sensor can detect and quantify over 14 of the most common combustible gases — including hydrogen — with a resolution of 0.1% LEL (Lower Explosive Limit), reporting both gas type and concentration. It can identify even the slightest changes in gas levels and provide early warnings, enhancing safety across a wide range of operational scenarios.

*Accuracy is guaranteed for methane and hydrogen across the full environmental range. For other gases, accuracy typically meets published tolerances under standard conditions of 20°C and 50% RH, and when oxygen is present in the air. Additionally, the airflow generated by the drone’s propellers can disperse gas concentrations around the sensor and interfere with the accuracy of gas measurements. For more precise readings, it is recommended to land the drone and turn off the propellers.

Comprehensive in-flight reading

When the drone is powered on, the Flammable Gas Sensor automatically activates, displaying gas concentrations in % LEL directly in the Cockpit App. If the gas concentration reaches the user-set threshold, a warning will appear on the screen to alert the pilot.

Adjustable LEL threshold

To prevent false alarms and ensure timely detection of hazardous gas concentrations, the pilot can manually set the LEL threshold of the sensor before flight, customising alerts to fit specific environmental and operational needs.

Keep-alive functionality during battery handling

To ensure continuous operation, the Flammable Gas Sensor functions independently of the drone’s power supply, allowing the pilot to change the battery without needing to redo the bump test or sensor initialisation, which must be performed in clean air, following a similar workflow to traditional sensors.

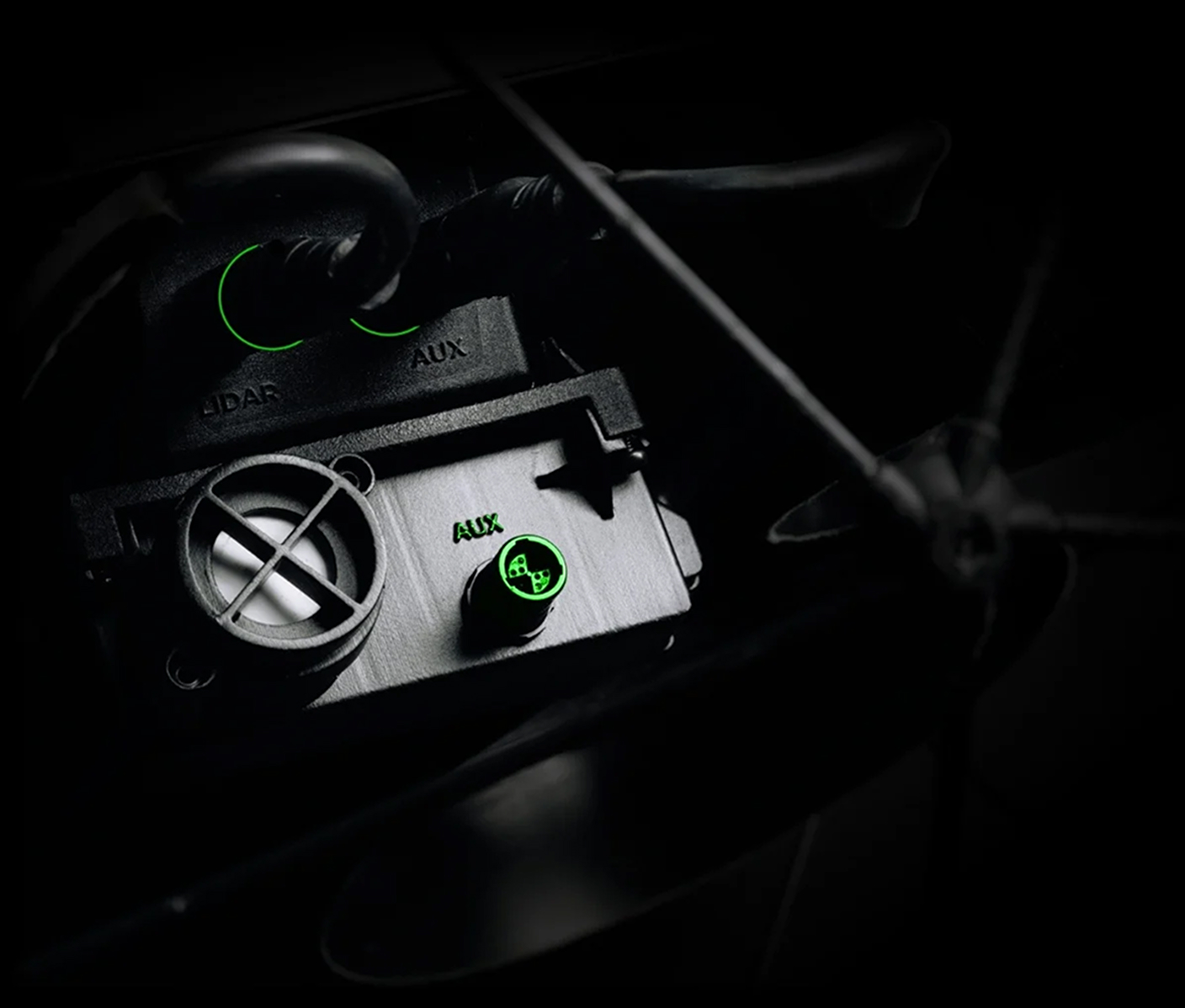

Compatible with other Elios 3 payloads

A connector has been integrated into the Flammable Gas Sensor, allowing other Flyability payloads to connect to the drone through the sensor.

For example, the LEL sensor can detect flammable gases while the UT payload measures material thickness.

With Molecular Property Spectrometer™ (MPS) technology

The Elios 3 Flammable Gas Sensor utilises NevadaNano’s advanced MPS™ technology for detecting flammable gases.

With its cutting-edge measurement capabilities and built-in self-test features, the MPS™ sensor provides the most accurate readings on the market and eliminates the need for field calibration, ensuring reliable performance in challenging environments.

Powered by NevadaNano

A connector has been integrated into the Flammable Gas Sensor, allowing other Flyability payloads to connect to the drone through the sensor. For example, the LEL sensor can detect flammable gases while the UT payload measures material thickness.

Q&A

Most drones commonly used outdoors rely on GPS signals for localisation and stability. However, they face challenges when operating indoors or in confined spaces due to the lack of GPS availability in these environments. In contrast, specialized drones like the Elios 3 are designed for GPS-denied environments, offering reliable localisation and stability without the need for GPS. These drones are specifically engineered to navigate in challenging conditions, such as dark, dusty, and confined spaces.

The Elios 3 is built for contact during flight, featuring a lightweight carbon-fiber cage that provides impact protection when the drone comes into contact with walls or structures. Additionally, the drone is equipped with bi-directional rotors, enabling it to autonomously flip back into an upright position mid-flight, even if it is toppled.

The Elios 3 is equipped with a 'Return-to-Signal' (RTS) safety feature that activates automatically if the connection with the remote control is lost. In RTS mode, the drone can autonomously retrace its flight path, returning to the takeoff point or continuing its flight until the connection with the remote control is restored.

The Elios 3 is equipped with an onboard LiDAR module that generates a real-time 3D map or model of the environment it is flying through. This enhances both the pilot’s situational and locational awareness while navigating the drone in confined spaces. The 3D map is also invaluable for identifying and localizing Points of Interest (POIs), such as defects detected during inspection flights. Additionally, the Elios 3 serves as a Scan-to-BIM tool, allowing the 3D model of the space to be used for creating BIM models and performing volumetric measurements.

The Elios 3 is designed with modular payload integration in mind. Currently, available optional payloads include the Radiation Detection Payload, UT Gauging Payload, Surveying Payload, and Flammable Gas Detector Payload. Additional payloads will be introduced progressively to expand its capabilities.
