ELIOS 3 UT MODULE
Payload
Remotely capture A-scans at height and in hard-to-reach spaces
In partnership with Cygnus Instruments, the UT Payload transforms Elios 3 into a flying UTM gauge, delivering precise thickness measurements and high-resolution A-scans in difficult-to-access locations. With Elios 3 UT, professionals can conduct regular integrity inspections quickly, reducing the risk of unplanned downtimes.
Location-Tagged UT Measurements
Smart Couplant Dispenser
Smart Probe Arm
Modular Probe Head
Cleaning Module
Live A-Scan
Location-Tagged UT Measurements with 3D Data
Elios 3, equipped with both the UT and LiDAR payloads, allows precise localisation of thickness measurements on a digital twin of your asset.
Paired with the Asset Management software and Cockpit’s Live Map widget, location-tagged UT measurements enhance situational awareness, ensuring you can easily track and verify your inspection’s progress.
Smart Couplant Dispenser for Optimal Ultrasound Transmission
The Elios 3 UT Payload includes a remotely operated couplant dispenser that ensures precise ultrasound coupling by delivering the right amount of gel.
Operators can monitor couplant levels via Cockpit and quickly refill or swap the dispenser’s syringe when needed, ensuring seamless operation during inspections.

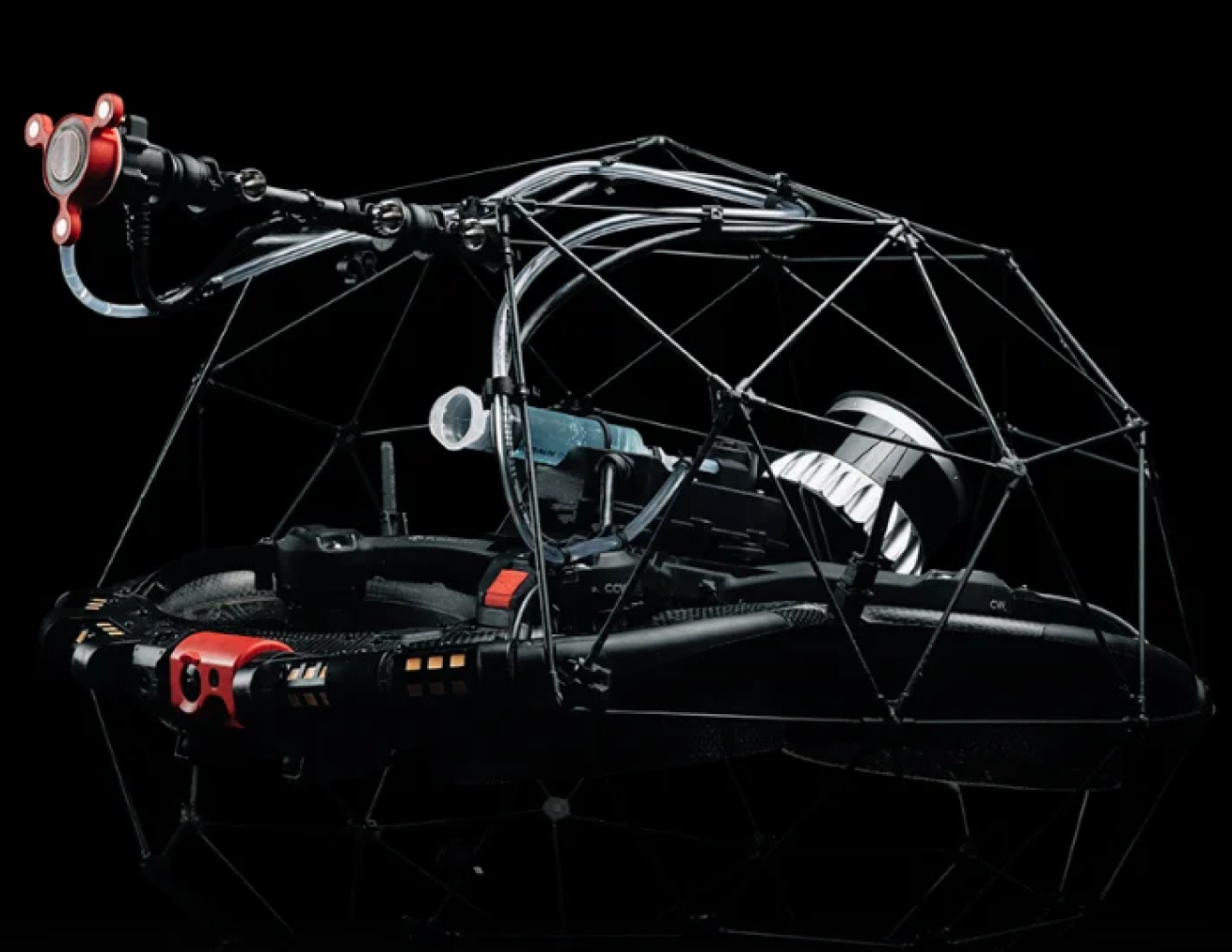

Smart Probe Arm
The smartest probe arm ever built on a drone.
Versatile orientation
The Elios 3 UT Payload can be mounted on top of, in front of, or below the drone, and the probe arm can be shaped to your needs, ensuring the necessary adaptability and accessibility to perform thickness measurements in a wide range of locations.
Versatile orientation
The Elios 3 UT Payload can be mounted on top of, in front of, or below the drone, and the probe arm can be shaped to your needs, ensuring the necessary adaptability and accessibility to perform thickness measurements in a wide range of locations.
Versatile orientation
The Elios 3 UT Payload can be mounted on top of, in front of, or below the drone, and the probe arm can be shaped to your needs, ensuring the necessary adaptability and accessibility to perform thickness measurements in a wide range of locations.

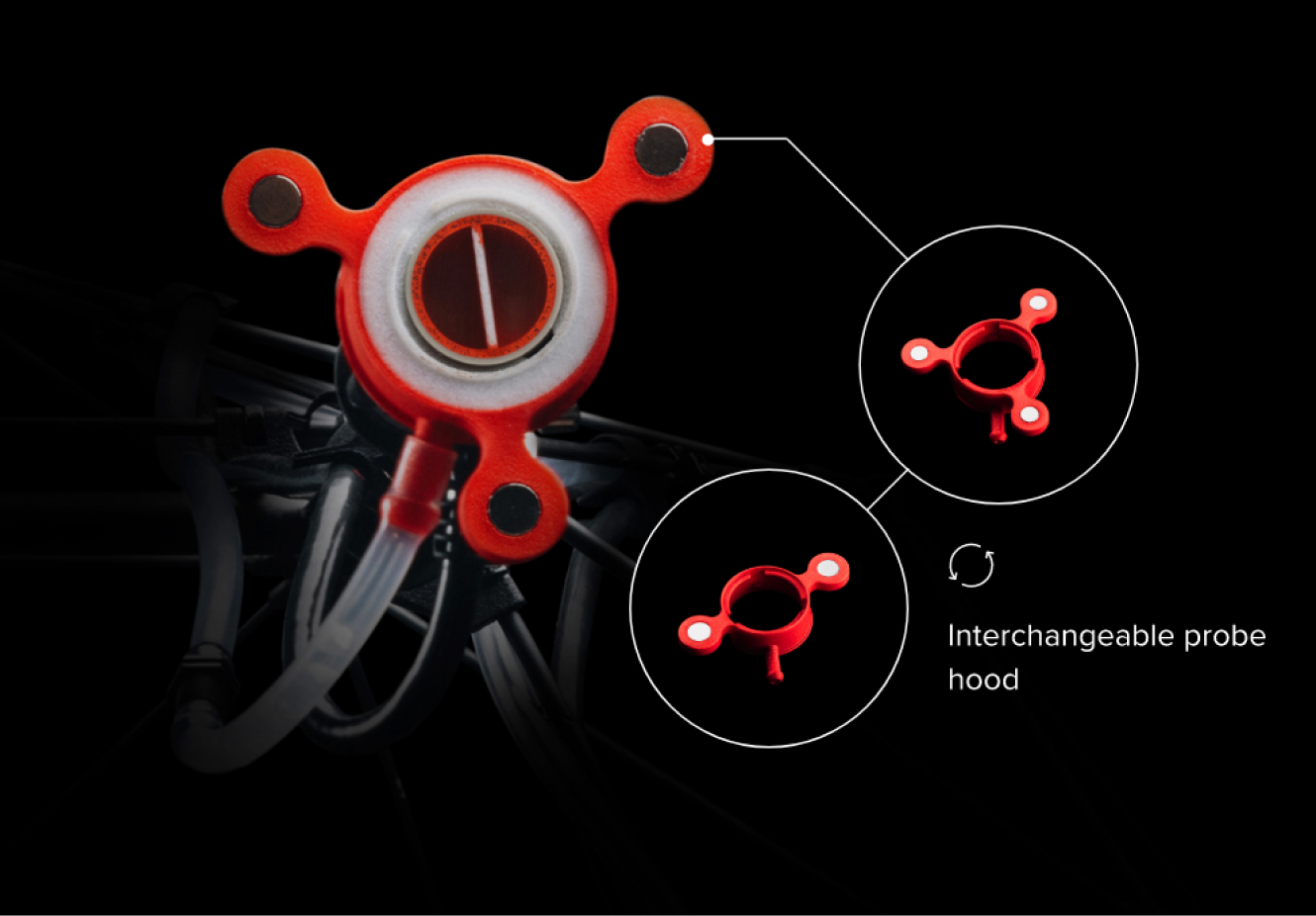

Modular Probe Head
A comprehensive selection of probes & hoods.
The Elios 3 UT Payload comes with adaptable probe hoods to fit different surface shapes, along with interchangeable twin crystal piezo-composite probes in 2MHz, 5MHz, or 7.5MHz. These probes are designed to measure heavily corroded metals and feature an Echo-Echo mode, allowing measurements through up to 1mm of surface coating.
Cleaning Module
for precise measurements.
The Elios 3 allows the probe head to be swapped with a cleaning module, effectively removing deposits and preparing surfaces for accurate measurement. With location-tagging, users can easily return to the cleaned area to complete the measurement with the probe head attached, ensuring no measurement is missed.
Live A-Scan
for real-time precision
Cockpit’s Live A-Scan widget gives operators full control over measurements, allowing for both automated and manual adjustments with customizable gain and gates. This real-time flexibility enables users to refine measurements instantly, even in challenging conditions.
SOFTWARE
Advanced Data Post-Processing
Convert UT data into actionable insights
Review your data points in post-processing using the Elios 3’s companion software, Inspector 5.
Navigate through POIs
All data points from your lights are displayed and located in a digital twin of your, easing navigation between points of interest.
Review and refine measurements
During the analysis, the A-Scan is retraced in the software, allowing you to verify the measurement of refine it by reselecting the most appropriate echo signals.
Document POIs
Data points can be documented by assigning them a criticality level and adding a description.
