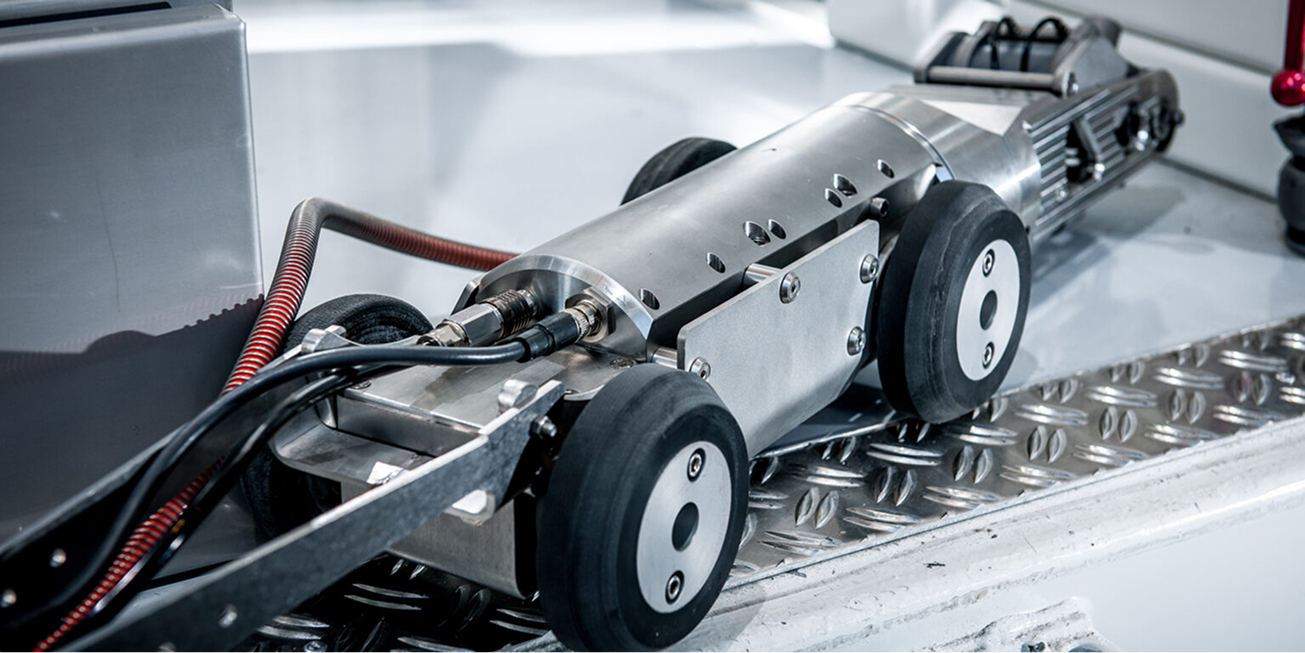

R160 Crawler
Jetting Crawler
(250-750mm | 10-30″)
a durable stainless steel crawler with a slim design, offering versatile, quick module exchanges for underground pipe inspection, cleaning, cutting, and rehabilitation.
Modules can be swapped in under 60 seconds using a twist-and-lock mechanism.
Applications
- UHP water jet cutting for the removal of solid obstructions and deposits settled
- Lateral reinstatement & cutting protruding taps
- Installation of Top Hats and other (UV) spot repair patches
- Removing rocks and other items from pipelines with the gripper
- CCTV Inspection
"Exchange various job-specific equipment modules within 60 seconds"
Specifications
Scope of use
Max. pressure
Drive
Rotation (pan)
Length
Body diameter
Weight
250 – 1000mm (10-40”)
3000 bar (43,500psi)
AWD – Electric
Infinite – Electric
440mm (17.3”)
125mm (4.9”)
22,3kg (49.2lbs)
Compatible Modules
- WJ180 Precision Water Jet Cutting 200 – 500mm (8-20“)
- WJ190 Precision Water Jet Cutting 250 – 750mm (10-30“)
- HA195 Lateral Reinstatement Cutting 250 – 750mm (10-30“)
- CAM160 CCTV Inspection 200 – 500mm (8-20“)
- Gripper 250 – 750mm (10-30“)
Features
- Twist-and-lock-mechanism
- Heavy-duty stainless steel
- Roll and Pitch sensors (x-y)
- Continuously pressurized
- Pressure sensor
- Rotation sensor
- Temperature sensor
Accessories
- Rotary- and pinpoint nozzles with extensions
- Fluid lens cleaner for concrete cutting
- Mixing unit to add root foaming or grease dissolving additives
- Gripper
